RPD48-40/2P

This product belongs to T2 class DC power surge protector, integrated base, pluggable module, seismic lock design. It can be widely used in the distribution system of LPZ2 to LPZ3 area as D level protection.

System voltage： DC48V
Maximum continuous operating voltage： 85V
Maximum discharge current Imax: 40KA

document download

main features

Dc power surge protector adopts a variety of lightning protection devices combined protection mode, parallel, integrated base, pluggable module, seismic lock design, with working state indication, failure remote alarm function.

01. Large current capacity, limited voltage low;

02. The operation voltage is appropriate, and the protection circuit is stable;

03. Built-in over heat, over current protection, no continuous flow, high reliability and safety;

04. Pluggable module structure, the module is anti-misinserted, replaceable, easy to maintain;

05. With status indication and remote alarm function;

06. Exquisite technology, can work in harsh environment for a long time, using 35mm DIN guide rail fixed, easy installation, simple maintenance.

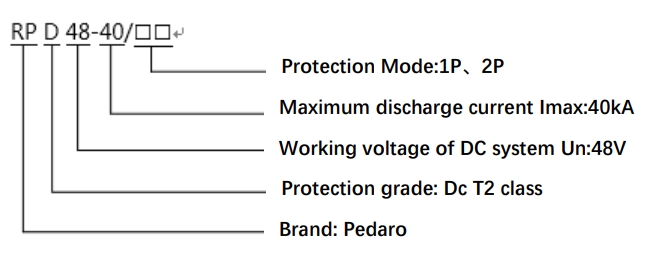

Naming rule

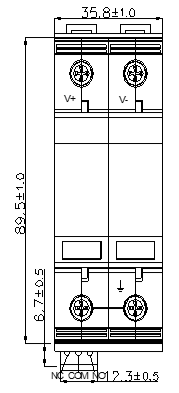

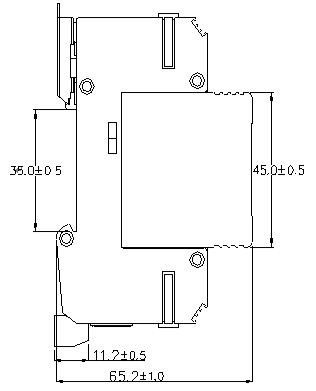

Dimension

RPD48-40/2P

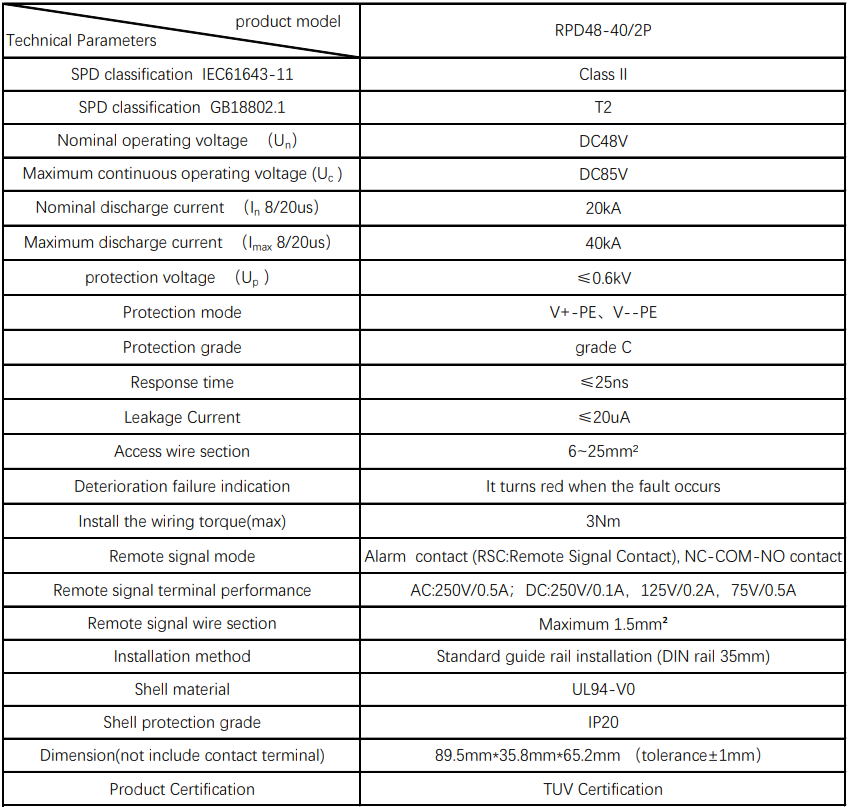

technical parameter
